| 브랜드 이름: | Womeng |
| 모델 번호: | WM-JAB02 |
| 모크: | 1 |
| 가격: | $400,000.00-$600,000.00 |
| 포장에 대한 세부 사항: | 항해에 적합한 나무 상자 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| Condition | Brand New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Production Line Size | 25x6x3M(For reference only) |
| Machine Weight | About 70 tons |
| Production Speed | 500-800Pcs/Min |
| Control System | PLC control system(Mitsubishi), HMI Operating on the LED touch screen, Configure HDTV monitor |
| Drive system | Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings. |
| Production Efficiency | ≥97% |
| Machine Capacity | 400KW (Excluding glue machine and air compressor) |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | High Standar Full Servo |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Packaging System | According to customer requirements with palletizer machine (double push double exit) adjustable |
| Warranty | 1 year |
Technical features
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

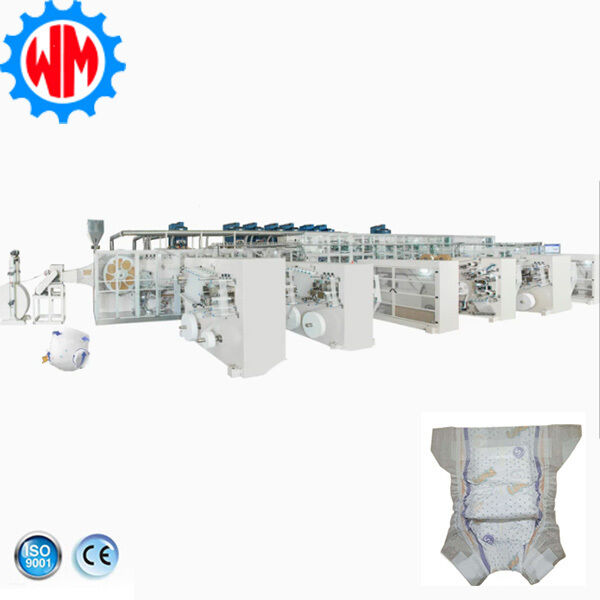

Machine Panoramic Image
Customized process empowerment to create differentiated terminal products
Customizable 3D anti-leakage waistband, dynamic waist circumference, perforated breathable surface layer and other special processes, supporting the addition of natural aloe vera and chamomile skin care essence coating, meeting the differentiated demands of the high-end maternal and infant market.
It is compatible with different formulas such as ultra-thin core (thickness ≤1.5mm) and high-absorption core (absorption capacity ≥800ml), helping buyers create best-selling products that stand out from competitors.
Value for international buyers: Break away from homogeneous competition, enhance the premium capacity of terminal products, and easily enter mid-to-high-end baby stores, cross-border e-commerce and other niche channels.
Data-driven management system empowers lean production decision-making
Equipped with an industrial Internet of Things (IoT) module, it can collect core data such as production capacity, pass rate, raw material loss, and equipment failure rate in real time, generate visual reports, and support remote viewing on mobile devices.
Supports integration with enterprise ERP and MES systems to achieve intelligent linkage of production planning, raw material inventory, and order delivery, meeting the digital management requirements of European and American brand owners for suppliers.
Value to international buyers: Precisely control the entire production process, optimize production scheduling, reduce the risk of inventory overstock, and enhance the stickiness of cooperation with major international clients.
화면
화면
화면
화면
화면
|
